Which WD Surveillance Hard Drive Is Right for Your Security System?

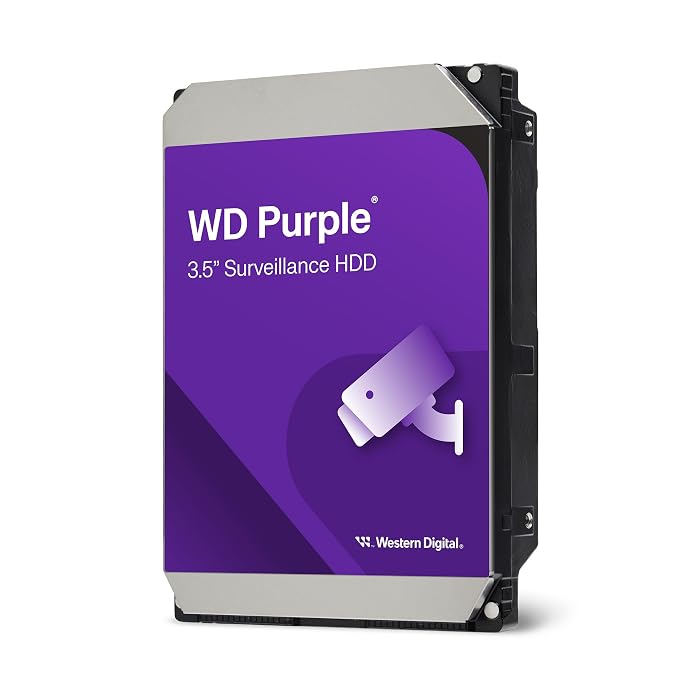

The Western Digital 8TB WD Purple Surveillance internal drive (model WD85PURZ) is built specifically for larger commercial surveillance installations that generate intense, continuous data feeds. Operating on the standard SATA 6 Gb/s interface in a 3.5-inch form factor, this 8000 GB mechanical drive features a 256 MB cache and spins at 5400 RPM. Western Digital tunes this platform for write-intensive operations characterized by low bit-rates and high simultaneous stream counts, ensuring reliable frame capture across multi-camera layouts.

What sets this unit apart from lower-capacity models is the inclusion of AllFrame AI technology. While baseline Purple drives handle standard video capture, the AllFrame AI enhancements present on 8TB and higher drives elevate the annual workload endurance from the standard 180 TB per year up to 360 TB per year. This added durability gives the drive sufficient headroom to support systems running concurrent video analytics and deep-learning camera feeds. The drive supports installations with more than eight bays, delivering stable transfer speeds of up to 215 MB/s while operating at reduced acoustic and thermal levels. If you occasionally need to duplicate or examine multi-terabyte camera archives outside your NVR server, running diagnostics via an external station like a cenmate 2 bay drive dock offers an efficient hardware pathway.

This drive suits facility managers and property owners operating smart NVR setups with dozens of cameras running continuous recording alongside automated motion detection or facial recognition algorithms. However, users managing simple 4-camera setups without automated analytics will find its extensive workload rating and advanced AI features far beyond their basic system requirements.

The Western Digital 4TB WD Purple Surveillance hard drive (model WD44PURZ) offers a middle-tier storage capacity matched with an elevated 7200 RPM spindle speed. Housed in a 3.5-inch chassis with a 128 MB cache buffer and SATA 6 Gb/s interface, this drive delivers read speeds up to 175 MB/s and continuous data transfer rates of 180 Mb/s. It is engineered from the ground up for mainstream commercial surveillance installations, featuring WD AllFrame technology to mitigate frame dropouts and enhance video playback performance.

Hardware durability is a notable aspect of this 4000 GB drive. The manufacturer incorporates tarnish-resistant components that safeguard electrical contacts within dense recorder enclosures that generate continuous heat. It supports deployment in chassis housing up to 16 bays, backed by a 3-year limited warranty and a workload rating of up to 180 TB per year. The faster 7200 RPM rotation allows the platters to read and write incoming sectors briskly, which assists environments where operators regularly pull playback clips while cameras continue active writing.

This model suits small business retail setups, office buildings, and multi-room facilities managing between 8 and 24 standard high-definition cameras. If your installation scales beyond 16 drive bays or requires advanced on-drive artificial intelligence deep-learning analytics, an enterprise-grade Purple Pro drive remains the better technical alternative.

The Western Digital 10TB WD Purple Pro internal hard drive (model WD102PURP) is designed for modern enterprise-grade security appliances, cloud surveillance servers, and deep-learning video analytics recorders. Featuring an expansive 10000 GB capacity, a 7200 RPM rotational speed, a SATA 6 Gb/s interface, and a generous 512 MB cache buffer, this drive sustains media transfer speeds reaching 267 MB/s. It delivers enterprise-class reliability intended to run unceasingly under dense data conditions.

A critical consideration in the wd purple vs purple pro evaluation centers on workload capability and data channel flexibility. The standard Purple family tops out at 180 to 360 TB per year, whereas this Purple Pro model provides a massive 550 TB per year workload rating. Its AllFrame AI technology not only optimizes multi-camera recording streams but also handles up to 32 discrete AI streams per drive for continuous server-side neural network processing. The unit also includes Western Digital Device Analytics (WDDA), giving system administrators proactive real-time insight into mechanical drive health and environmental operational stresses before drive failure occurs.

This hardware is an optimal match for enterprise installations, corporate campuses, municipal security centers, and AI-driven automated processing appliances. On the other hand, individuals configuring a simple, four-channel residential recorder will find this high-workload, commercial-tier drive unnecessary for basic household surveillance needs.

The Western Digital 2TB WD Purple Surveillance internal drive (model WD23PURZ) provides an entry-level continuous storage solution designed for residential and modest commercial systems. Built as a standard 3.5-inch SATA 6 Gb/s drive, it features a 64 MB cache, spins at an energy-efficient 5400 RPM, and delivers media transfer speeds of up to 180 MB/s. Western Digital tunes this platform specifically for mainstream surveillance equipment, employing WD AllFrame technology to ensure reliable video captures with low bit-rate overhead.

The technical parameters of this 2000 GB drive are matched to smaller video recorder platforms. It carries a workload rating of up to 180 TB per year, which easily covers continuous recording from several standard 1080p cameras. System builders should observe that 1TB and 2TB Purple drives support multi-drive enclosures housing up to eight bays, unlike larger units that accommodate up to 16 bays. Furthermore, the manufacturer specifies that tarnish-resistant component protection begins at the 3TB tier, meaning this 2TB model omits those specialized surface treatments. For those managing routine offsite backups of crucial clip archives without opening an internal recorder, a compact western digital external hard drive 2tb drive serves as a practical portable accessory.

This model is an appropriate match for residential property owners or single-room shops operating between two and four basic security cameras with a week or two of video retention requirements. Installers needing long archive retention spans across multi-week periods or planning to expand past eight physical drive bays should immediately step up to higher-capacity alternatives.

The Western Digital 6TB WD Purple Surveillance hard drive (model WD64PURZ) sits comfortably in the capacity sweet spot for commercial installations that require extended continuous video archives. Offering 6000 GB of raw storage space, this 3.5-inch internal drive uses a SATA 6 Gb/s connection, runs at 5400 RPM, and features a sizable 256 MB cache. It sustains media transfer speeds of 180 MB/s, designed specifically to operate continuously in environments exposed to fluctuating operating temperatures and recorder chassis vibrations.

Western Digital incorporates tarnish-resistant internal components into this 6TB drive to prevent environmental corrosion in enterprise server racks and dense recorder chassis. It handles setups scaling up to 16 drive bays, making it suitable for multi-drive RAID or JBOD arrays across business properties. The 180 TB per year workload rating and integrated WD AllFrame firmware ensure that high stream counts from diverse camera angles do not overload the drive platters or drop frames during peak activity periods. For broader off-site data retention plans, pairing commercial internal drives with options from the best western digital external hard drives line helps maintain redundant footage backups away from the primary recorder.

This 6TB drive suits school campuses, mid-sized shopping centers, and warehouses that maintain dozens of high-definition cameras requiring thirty to sixty days of uninterrupted retention. Conversely, setups requiring on-drive deep-learning artificial intelligence processing should skip forward to the Purple Pro line for dedicated AI stream allocation.

The Western Digital 1TB WD Purple Surveillance internal drive (model WD11PURZ) represents the entry gateway into Western Digital specialized video surveillance storage. Housed in a traditional 3.5-inch form factor with a SATA 6 Gb/s connection, this 1000 GB hard drive features 64 MB of cache and operates at a modest 5400 RPM rotational speed. Built explicitly to replace standard PC drives in light security systems, it includes surveillance-class firmware that handles continuous 24/7 write tasks without suffering heat-induced throttling.

Despite being the most modest capacity in the catalog, this unit still delivers a full 180 TB per year annualized workload rating and utilizes standard WD AllFrame technology to reduce frame loss across write-intensive camera operations. Its physical architecture is engineered to run coolly and quietly within compact standalone video recorders. Similar to the 2TB model, the manufacturer restricts this 1000 GB tier to enclosures with up to eight drive bays, and it does not feature the tarnish-resistant component coatings found on capacities of 3TB and above. When managing footage archives from light systems, using practical wd external usb hard drives provides an easy pathway to store clips without filling the primary recording platter.

This drive is best suited for small retail kiosks, private garages, or small apartments running one or two standard cameras where long retention windows are unnecessary. Installations featuring 4K recording cameras or requiring multi-week retention should pass on this entry unit in favor of a 4TB or larger model.
